उत्पाद का विवरण
Place of Origin: China
ब्रांड नाम: SDLIFT Or OEM
प्रमाणन: CE ISO SGS
Model Number: SJG3-5
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1 UNIT
मूल्य: USD4800- USD7800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 30 days
Supply Ability: 1200units per year
Installation: |
Indoor/Outdoor |
Lift System: |
Hydraulic system |
Control Mode: |
Control panel, control box and remote |
Table Size: |
2500x2000mm |
Load capacity: |
3000kgs |
Travel Height: |
5000mm |
Feature: |
Easy Operation Safety Convenience |
Application: |
scissor lift platforms for pallet moving |
Guardrail Height: |
1100mm |
Safe Device: |
Explosion-Proof Lock Valve |
Installation: |
Indoor/Outdoor |
Lift System: |
Hydraulic system |
Control Mode: |
Control panel, control box and remote |
Table Size: |
2500x2000mm |
Load capacity: |
3000kgs |
Travel Height: |
5000mm |
Feature: |
Easy Operation Safety Convenience |
Application: |
scissor lift platforms for pallet moving |
Guardrail Height: |
1100mm |
Safe Device: |
Explosion-Proof Lock Valve |

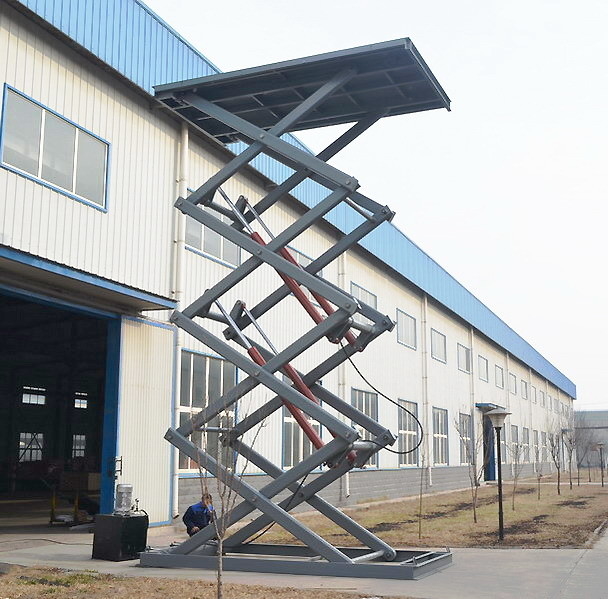

Customizable Stationary Hydraulic Scissor Lift for Heavy Duty and Customizable Cargo Handling
Application:
Hydraulic lift table is used to lifting goods among different floors. It is widely used in factory, warehouse, logistic center, airport and so on.
Those scissor lift tables can be totally customized with load capacity, platform size, and lifting height.
·Load capacity: 500kg - 50000kg
·Lift height: 1m - 12m
·Platform size: as customized
·Power: 380v/3ph or 220v/1ph, or customized as your local power supply
The models we supplied for clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG0.3-2 | 0.3T | 1.2m x 1.2m | 2m | 400mm | 220V, 240V, 380V or 400V |
| SJG1-3 | 1T | 1.5m x 1.5m | 3m | 600mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
| The hydraulic scissor lifting platform can be customized as your detailed size. | |||||
The parts of sample lifting platform:
Products in our workshops:
The customers visiting:
Our workshops:
Loading into containers in our factory:
CE certificate :
